Connecting measurement for

HAKE-SPECIAL sprayballs

DIN 11850, Row 1 • Material PTFE

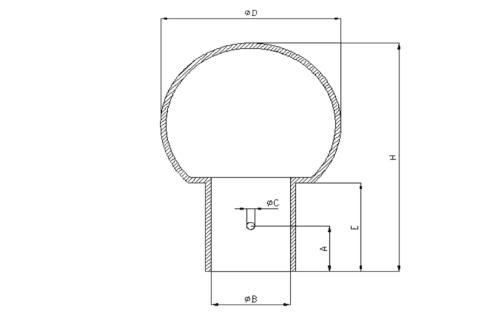

Overview of the connecting dimension
(indicated in mm)
DN A B C D E H B
(available with IG)
8 - - - - - - -
10 9 12.2 2.2 28 17 43 IG 1/8"
15 9 18.2 2.2 34 17 45 IG 1/4" ; IG 3/8"
20 9 22.2 2.5 46 21 57 IG 1/2"
25 18 28.2 2.8 70 35 96 IG 1"
32 18 34.2 2.8 70 35 96 IG 1"
40 18 40.3 2.8 70 35 96 IG 1"
50 25 52.3 3.3 98 47 130 IG 2"
Deutsch
Deutsch Deutsch
Copyright © 2016 - HAKE GmbH. All Rights Reserved.

Connecting measurement for

HAKE-SPECIAL sprayballs

DIN 11850, Row 1 • Material PTFE

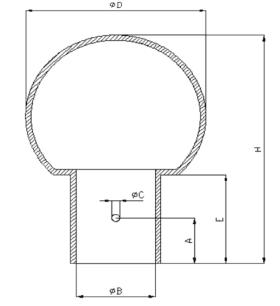

Overview of the connecting dimension
