Connecting measurement for HAKE-Sprayballs

Row C to ASME-BPE 1997 (OD-Tube) • Material 1.4571 & 1.4435

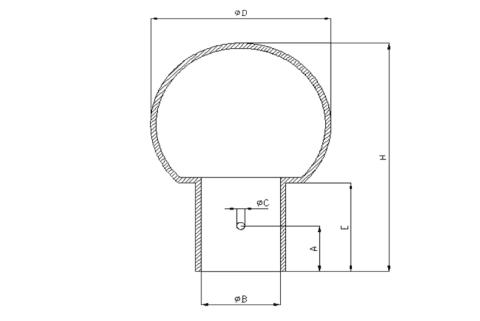

Overview of the connecting dimension
(indicated in mm)
OD-Tube A B C D E H B
(not available with IG)
3/8" 9 10 2.2 24 17 37.5 -
1/2" 9 13 2.2 30 18 42 -
3/4" 9 19.2 2.5 40 21 53 -
1" 18 26 2.8 64 35 90 -
1 1/2" 18 38.2 2.8 64 35 90 -
